According to customer requirements, wireless coverage will be provided on a 5-kilometer highway section, with vehicle design speeds ranging from 80-100 kilometers per hour.

2、Actual demand

The road needs to be fully covered, and vehicles need to connect to the coverage network for mobile WIFI at normal speed. The connection speed needs to be as short as possible, based on the actual testing time.

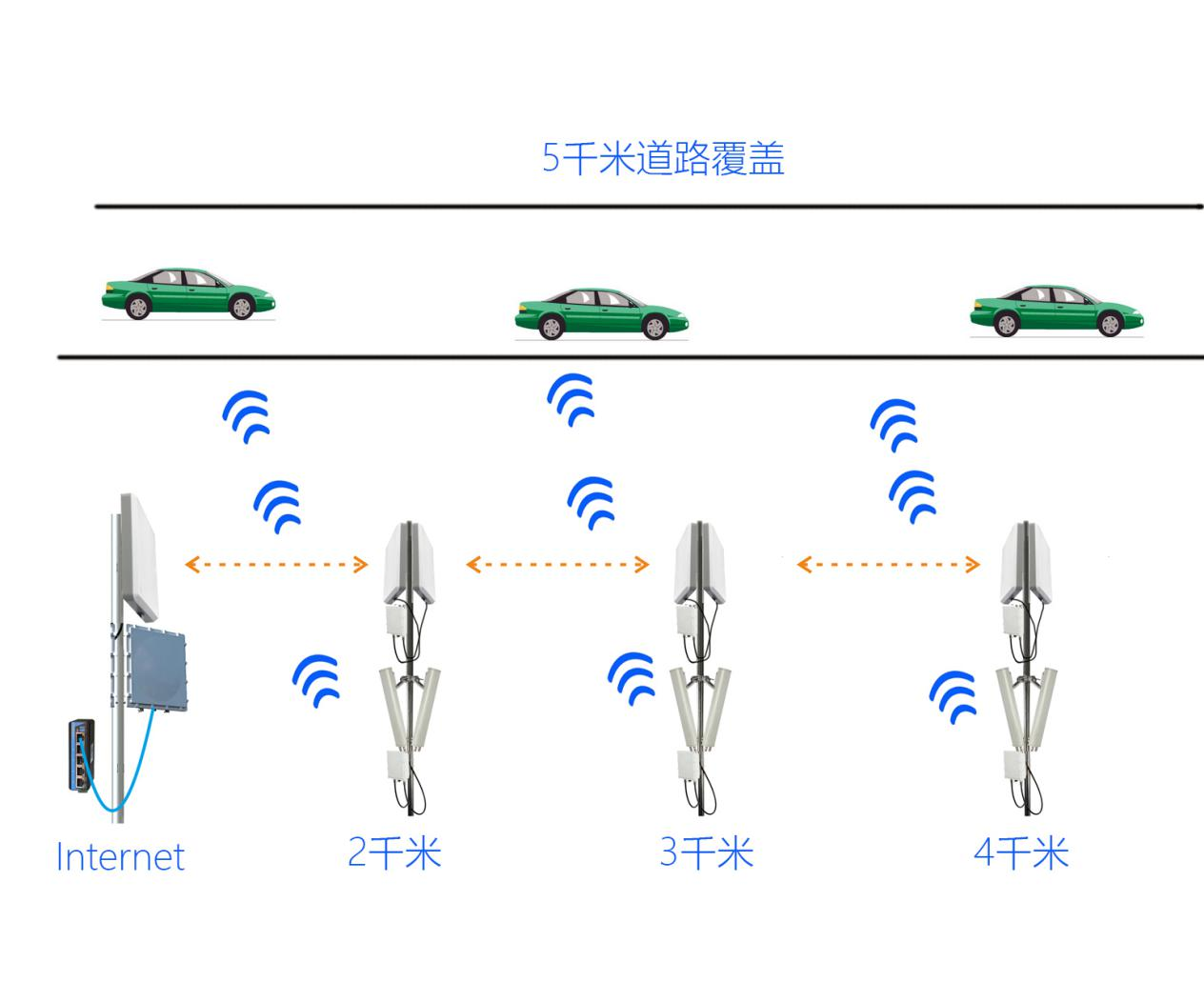

3、Preliminary conceptual plan as shown in the figure

Explain the following points in detail

● The backbone network equipment uses a high bandwidth gigabit bridge SF-5000MS-02, where one module is responsible for the upper level link and the other module is responsible for the lower level hand in hand link.

● The square plate-shaped antenna in the above picture is responsible for building a backbone network by holding hands with the lower level bridge (the customer will officially use the backbone link to run optical fibers in the future) and communicating according to the yellow link.

● The SF-5000 series dual-mode device is selected for the coverage bridge equipment, with one module responsible for the coverage position of 1 kilometer on the left and the other module responsible for the position of 1 kilometer on the right.

● The rectangular antenna is a 2.4G wide-angle coverage antenna (the specific coverage frequency can be adjusted to 5.8G depending on the handheld terminal), which covers the blue wireless signal.

● Each point is covered repeatedly by intersecting with each other, minimizing signal blind spots.

4、Equipment Required List
