Wireless transmission mobile video terminal TQ-7730MM emergency control monitoring products are widely used in power, transportation and other industries. The market segmentation in the industry has put forward special requirements for mobile monitoring.
Wireless transmission mobile video terminal TQ-7730MM emergency control monitoring products are widely used in power, transportation and other industries. The market segmentation in the industry has put forward special requirements for mobile monitoring. When conducting field operations in the field, high requirements are put forward for wireless video emergency control, which requires simple and convenient installation, stable wireless transmission, clear front-end images, and real-time return.
● Using wireless network for transmission

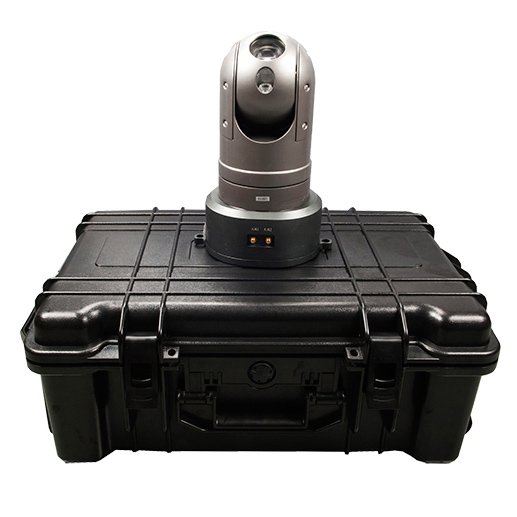

● Integrated design, the whole set adopts a pull-out aviation box design, which is easy to carry
● High-capacity lithium battery design, using high-performance lithium battery cells, each combination is matched in capacity, so that the battery can play the maximum effect
● Equipped with a high-definition mini vehicle-mounted PTZ camera, using high-performance movement, the image is clear and stable
● Support local storage, built-in hard disk seat, optional large-capacity hard disk
● Support network port debugging and quickly retrieve data to the computer
● Equipped with three stable frames, the front-end cameras can be set up flexibly and conveniently
● Local support for video output

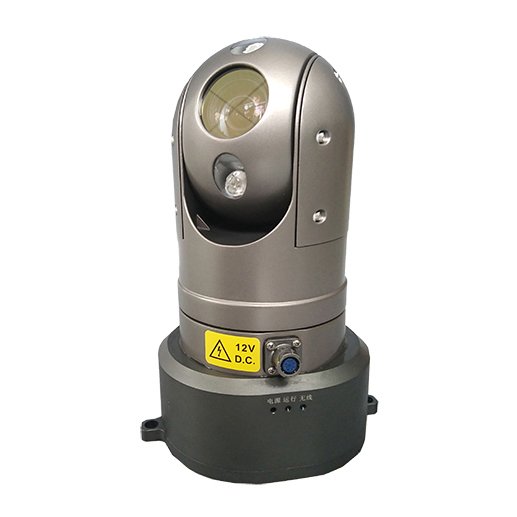

Vehicle-mounted spherical camera function introduction:
● The PTZ uses a built-in high-intensity light-emitting chip to achieve long-distance night vision monitoring
● Adopting highly integrated 16-bit processor, extremely low power consumption, super stable
● Adopt 0.9° precision motor drive, low speed and stable operation, smooth and jitter-free operation
● Industrial-grade components are used, suitable for all kinds of severe weather
● Exquisite structural design, high-strength aluminum alloy precision casting shell, impact resistance and corrosion resistance
● 360o unlimited continuous rotation horizontally, manual horizontal control speed 0.1~220°/s, vertical control speed 0~90o
● The maximum horizontal preset speed is 200°/s, and the maximum vertical preset speed is 120°/s
● Can store 256 preset positions, data memory after power failure
● The PTZ protection level reaches IP66, supporting three-level lightning protection and surge protection
● The PTZ is installed in a normal way.
● With strong magnets, you can install and shoot at any time
● Realize portable vehicle-mounted or other monitoring methods
