Backbone ultra-high bandwidth digital wireless bridge

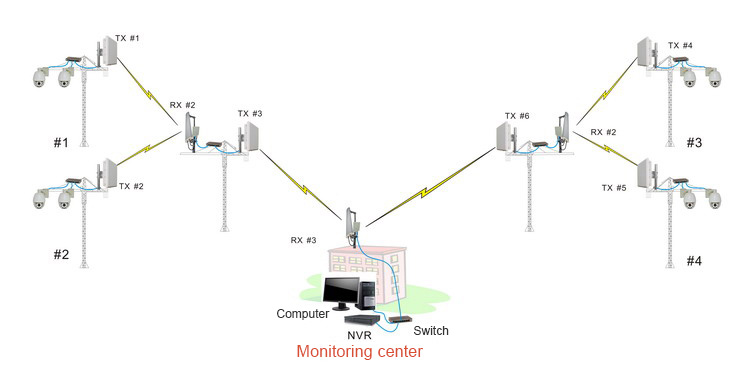

TQ-5800AC-M3 backbone MIMO outdoor wireless bridge is based on the latest generation of wireless transmission technology, supports 802.11a/b/g/n/ac protocols, and can theoretically reach 1.3G in air-time rate under 802.11AC protocol. The measured bandwidth peak can reach 900Mbps. It is suitable for wireless network connection services in harsh outdoor environments, providing high-bandwidth network connection and multimedia IP data transmission requirements for deployed enterprises and industrial users. It is not only suitable for network transmission but also for large-scale IP monitoring. The device works in the 5G frequency band, adopts 3X3 MINO multi-input and multi-output technology, has rich multi-channel resources, has excellent spectrum efficiency, strong anti-interference ability, has advanced priority control, and perfectly supports the transmission of audio, video and network data. The power supply adopts DC48V voltage input design, and the actual power consumption of the equipment is less than 19W. In the absence of mains electricity in the wild, it can be flexibly matched with various power supply methods such as batteries, solar energy, and wind energy to work.
