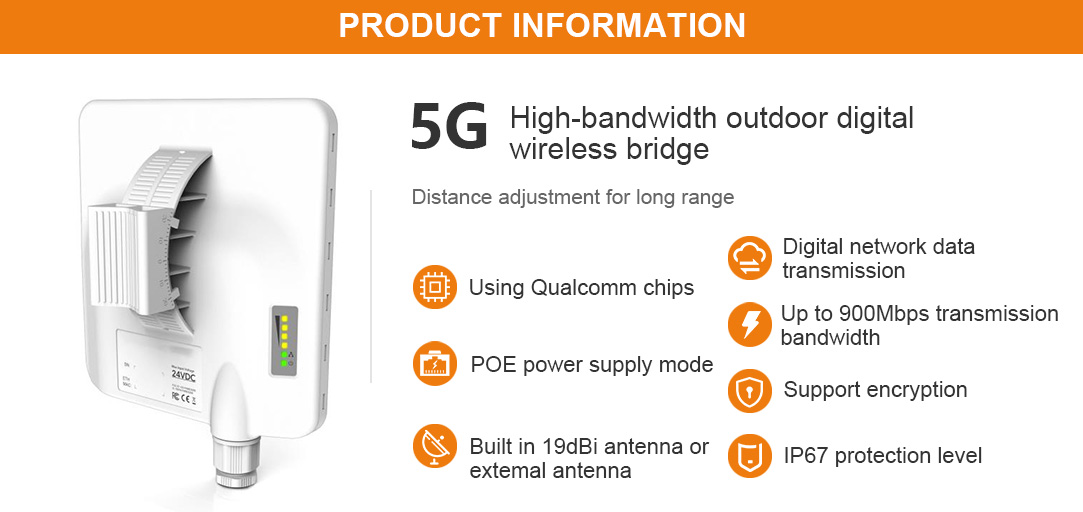

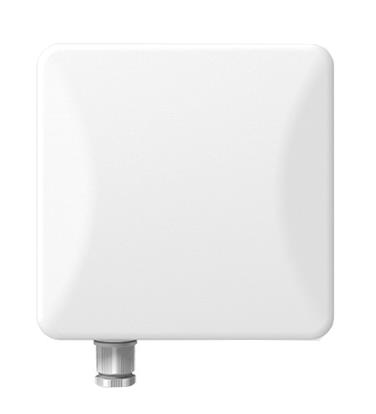

TQ-5820AC outdoor wireless bridge is based on the latest generation of wireless transmission technology, and its powerful hardware configuration makes it the first choice for application with high bandwidth requirements, suitable for point-to-point and point-to-multipoint different scenarios.
TQ-5820AC outdoor wireless bridge is based on the latest generation of wireless transmission technology. 500+Mbps throughput is based on 802.11ac standard protocol and self-developed iPoll protocol. It adopts high-pass 9563CPU (750 MHz) and high-pass 9882 wireless modules, 64 MBytes RAM and 16 MBytes flash memory. It is the powerful hardware configuration that makes it the first choice for applications with high bandwidth requirements, suitable for point-to-point and point-to-multipoint different scenarios.
The new appearance design makes the equipment and the overall package smaller and lighter. IP-66 waterproof grade, no metal material is used in the design, so there is no need to worry about corrosion. The installation component can accurately adjust the angle, and the assembly is simple and the installation is flexible. It is composed of two simple connection parts, which allows the equipment to be installed on the holding pole at an upward and downward inclination. Thickened component design for enhanced corrosion resistance. The equipment operates in 5G band, with rich channel resources, excellent spectrum efficiency, strong anti-jamming capability, advanced priority control, and perfect support for audio, video and network data transmission.
The equipment supports Chinese-English interface, which is easy to operate and eliminates the tedious operation mode, making the debugging more fast and convenient, conducive to rapid deployment, and very suitable for the quick start of engineering technicians. DC24V wide voltage input design is adopted for power supply, and the actual power consumption of the equipment is less than 10W. In case of no mains supply in the field, it can flexibly work with battery, solar energy, wind energy and other power supply modes. Ideal for point-to-multipoint high bandwidth wireless monitoring.
● Qualcomm Atheros 750MHz Processor AR9563
● High-pass 9882 wireless module
● compatible IEEE 802.11ac/a/n
● 5GHz 30dBm total power
● Individually innovated and developed iPoll protocol
● Signal and LED display of field antenna shall match
● Distance adjustment for long range
● IP66 enclosure
Due to the high bandwidth and stability of the product, the equipment is widely used in forest fire prevention, island monitoring, large data transmission in mining areas and factories.
