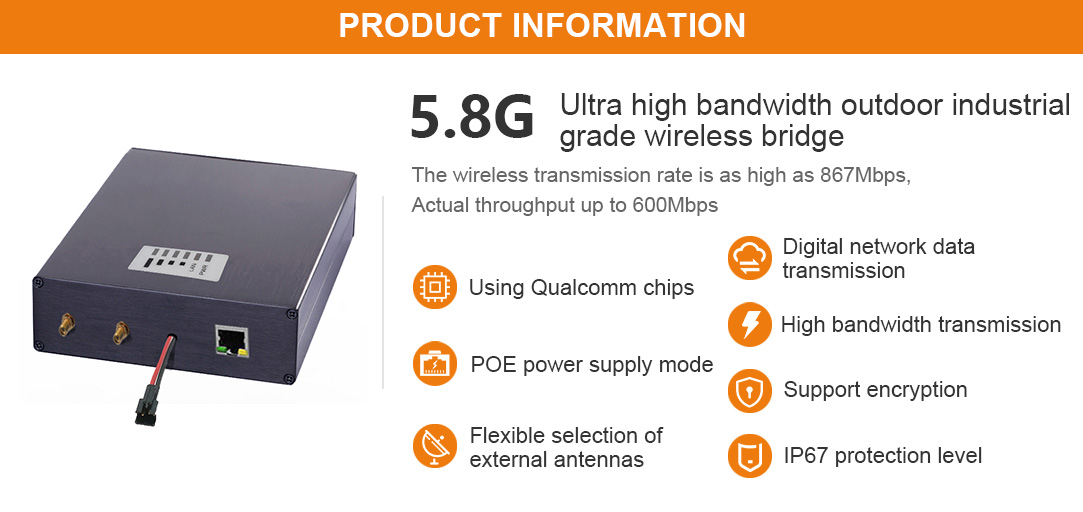

TQ-5723WJ series high-capacity unlicensed frequency band point-to-point and point-to-multipoint digital wireless bridge, based on dynamic TDD point-to-point proprietary wireless protocol, the data is enclosed into big packet for transmission, improving the transmission efficiency, bandwidth utilization, transmission distance, throughput and PPS transmission capacity of the system. The 64-byte transmission delay of the system<2ms can realize real-time transmission of voice, video and other data. With 2 × 2 MIMO breakthrough technology, the throughput is up to 600 Mbps, with excellent PPS packet processing capability and high anti-jamming capability.

TQ-5723WJ series products are applicable to point-to-point network application of telecommunication level, and ideal equipment for special access or return application (including VOIP and other small data packet transmission applications). This range combines flexible channel bandwidth (20 or 40MHz) with a proprietary, custom long-distance transmission protocol for extremely high spectrum utilization.

 TQ-5723WJ product integrates a series of advanced software mechanisms to provide the best point-to-point connection performance for high-throughput and long-distance link applications. Proprietary communication mechanisms dynamically allocate bandwidth to the required transmission direction using dynamic time division duplex (TDD) technology, thereby improving link efficiency and significantly reducing the impact of transmission distance on link throughput. Our point-to-point products also use selective retransmission ARQ technology to enhance error correction capability and optimize data flow, so that the equipment can still achieve very high throughput in case of large bandwidth, long distance and even interference.

The new TQ-5723WJ series products have a built-in RF module transmitting power of 29dBm, so that a stable long-distance link can be established with the built-in antenna. The product is equipped with gigabit Ethernet port, supports 802.3af standard, and is more flexible and convenient to use. At the same time, electrostatic protection in accordance with IEC 61000-4-2 (ESD) standard and surge protection in accordance with IEC 61000-4-5 (Surge) standard are built in.

● GHz point-to-point and point-to-multipoint bridge, ideal equipment for special line access, data return and communication network

● Flexible adjustment of channel frequency and channel bandwidth (5/10/20/40/80 MHz)

● Wireless transmission rate up to 867Mbps, actual throughput up to 600Mbps

● State-of-the-art proprietary MiMo 2 wireless protocol

● Powerful PPS packet processing capability, ideal equipment for VOIP return application

● Supporting ARQ (selective retransmission), which is economical for ultra-high throughput.

● Dynamic time-division duplex, real-time bandwidth distribution as required

● PoE power supply, support 802.3af standard ● support 1000 Base-T Ethernet interface

● Wireless transmitting power up to 29dBm

● Advanced safety technology

● Comprehensive management function

● Web graphic interface

● Support SSH command management

● Support centralized management of WNMS

● Support SNMP V1/2/3: 802.1, 802.1x, MIBII

● Professional installation components suitable for various installation scenarios.

Due to the high bandwidth and stability of the product, the equipment is widely used in forest fire prevention, island monitoring, large data transmission in mining areas and factories.
