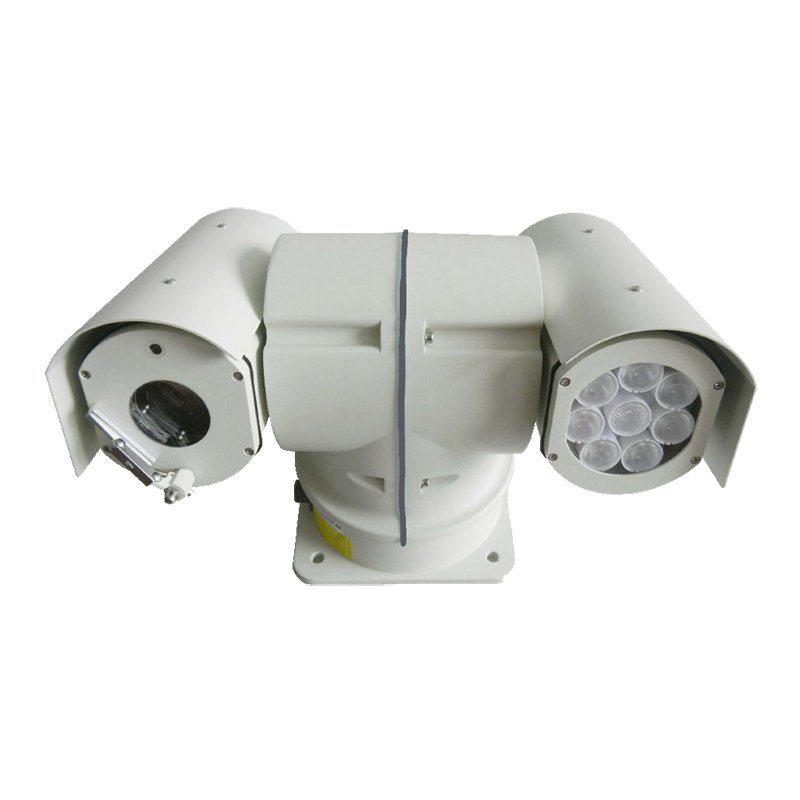

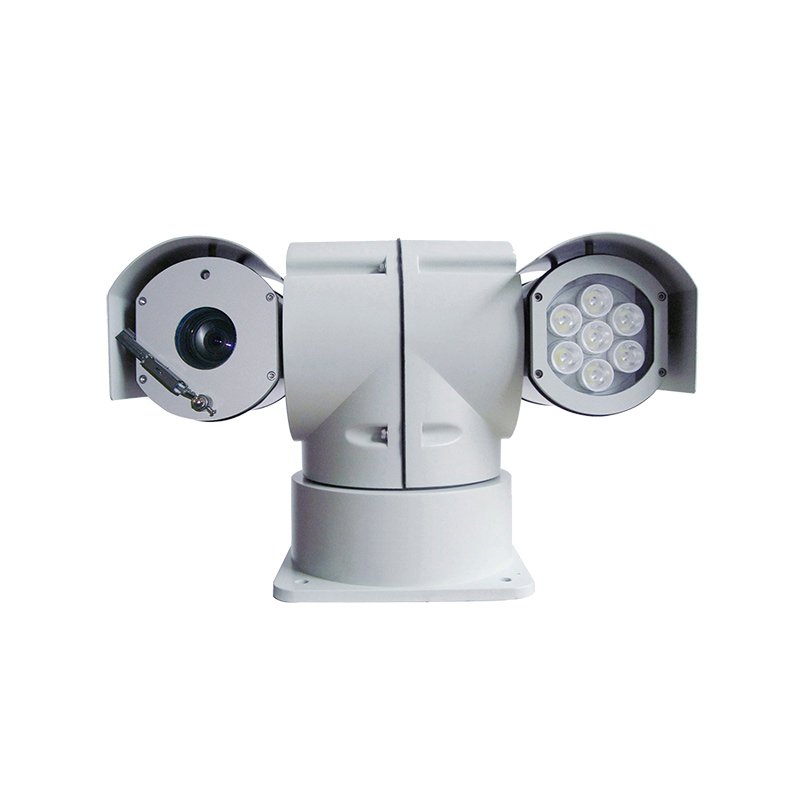

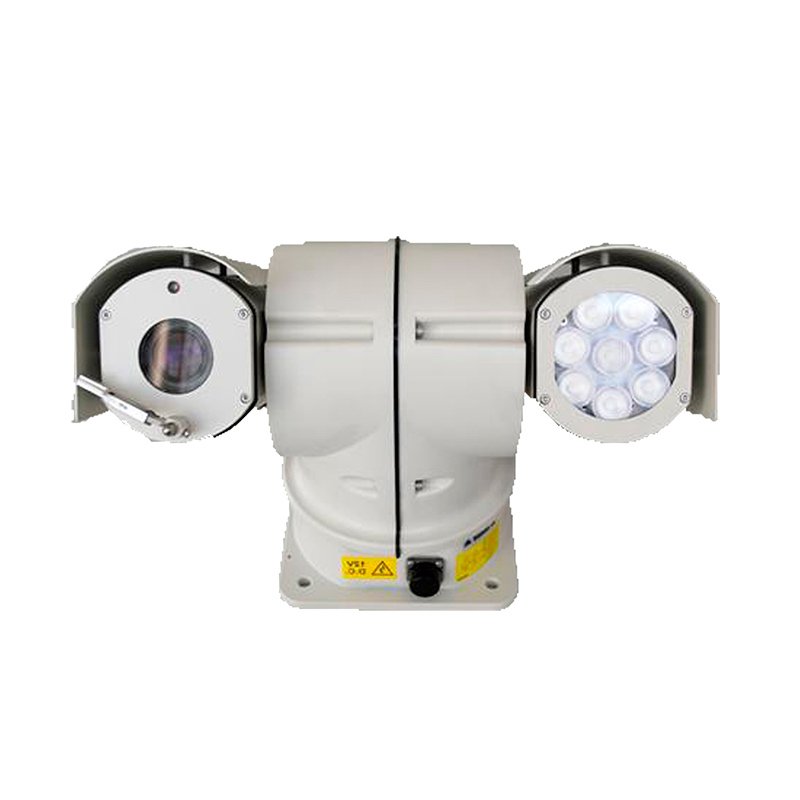

The TQ-CZ100GR series of high-definition intelligent PTZ cameras adopts an all-weather design, and the exterior is made of high-strength aluminum alloy, which has high impact resistance and corrosion resistance. The protection level reaches IP67, supports Hikvision, Sony, Samsung, Hitachi, and other domestic high-definition movements, and can choose network output interface, high-definition SDI output interface and AHD high-definition output interface according to user needs. It is widely used in public security, road administration, traffic police, communication command, duty and other vehicles (fire trucks, police cars, road administration, communication command vehicles, trains, etc. and other special-purpose vehicle monitoring, top-loading installation method), and can be used in evidence collection, emergency rescue, on-site investigation, construction operations, accident handling, emergency rescue and repair environments.

PTZ Features:

● All-weather environment design, high-strength aluminum alloy shell, impact-resistant and corrosion-resistant

● Support Hikvision, Sony, Samsung, Hitachi, and other domestic high-definition cameras

● Super strong anti-vibration performance, especially suitable for vehicle monitoring or prison monitoring

● Built-in decoder, integrated with multiple protocols

● Integrated omnidirectional pan/tilt (360-degree horizontal continuous rotation)

● Manual rotation speed is continuously adjusted from 0 to 60 degrees per second; vertical: -90 to 90 degrees;

● Horizontal scanning between two points •Editable patrol track, track self-learning function

● Protection level up to IP67

● Vehicle power supply voltage input range: DC10.5V~DC18V

● Supports connection to various networks/SDI/TVI/CVI/AHD and analog cameras, thus connecting to various manufacturers’platforms

● Dual control mode is adopted, and the pan/tilt and lens can be controlled through RS485 and RJ45 network ports

● Adopting German imported dot matrix infrared light, night vision distance 100 meters

● Standard defrosting and defogging device, automatic heating when turned on and preset heating

● Support coordinate display and angle acceptance instructions

● Built-in voltage regulator module to protect the device stable and durable

● The highest resolution can support 4K and 8K, etc.

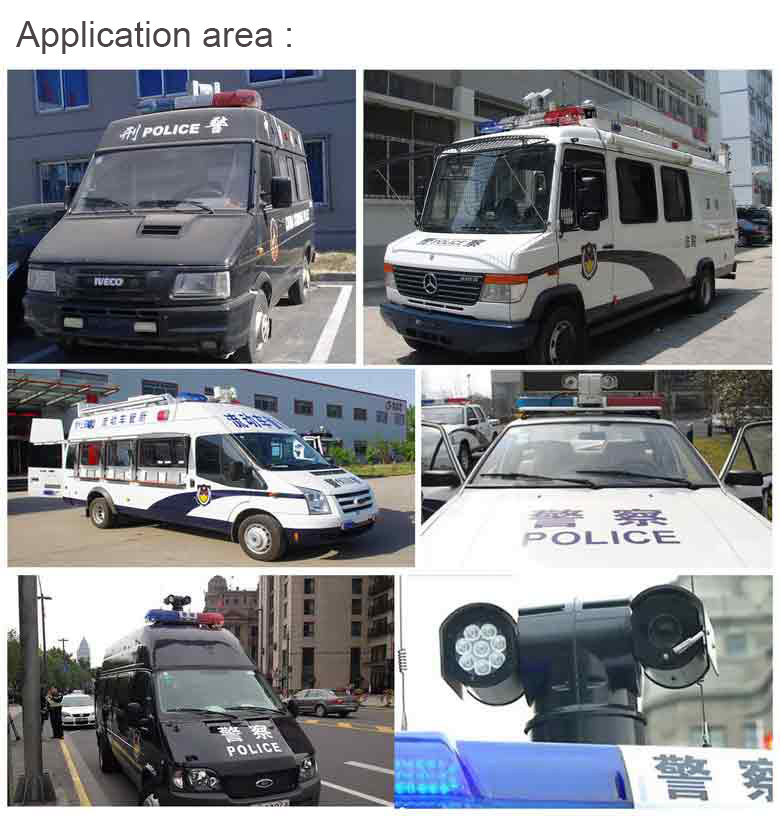

It is widely used in public security, road administration, traffic police, communication command, duty and other vehicles (fire trucks, police cars, road administration, communication command vehicles, trains and other special purpose vehicle monitoring, top-load installation), and can be used in evidence collection, emergency rescue, on-site investigation, construction work, accident handling, emergency rescue and repair and other environments.
