TQ-5040G high-power outdoor wireless bridge is suitable for wireless network connection services in harsh outdoor environments. It provides high-bandwidth network connection and multimedia IP data transmission needs for deployment enterprises and industrial users. It is not only suitable for network transmission but also for large-scale IP monitoring. TQ-5040G high-power outdoor wireless bridge equipment can use the built-in 18dBi gain antenna to effectively connect two distant nodes to the network. The transmission distance can reach 8km, and the transmission bandwidth can reach 80-90Mbps, which can provide wireless transmission quality that is no less than that of wired network quality.
      TQ-5040G high-power outdoor wireless bridging device supports AP mode, WDS mode, ClientBridge+Repeater AP mode. The cooperation between different modes can achieve different functions, and can do point-to-point transmission and point-to-multipoint transmission. In WDS mode, a 1-to-8 link form (fill in 8 different MAC addresses) can be achieved. In AP mode, it can theoretically support 32 clients. The device supports Chinese and English interfaces, is easy to operate, and removes cumbersome operation methods, making debugging faster and more convenient, which is conducive to rapid deployment and very suitable for engineering and technical personnel to quickly get started. The power supply adopts a DC12~24V wide voltage input design, and the actual power consumption of the equipment is less than 5W. In the absence of city electricity in the wild, it can be flexibly matched with batteries, solar energy, wind energy and other power supply methods to work.

Wireless Features:

● Support IEEE802.11an, up to 300Mbps(Tx), 300Mbps(Rx) transmission rate

● Transmission power control is controllable, and the power can be adjusted according to the environment

● Support channel selection: manual setting or automatic setting

● Supports wireless base station scanning, which can quickly scan whether there are similar wireless devices around, facilitating rapid deployment of wireless networks

● Each SSID can support up to 32 connected users, and supports up to 7 SSIDs (virtual APs)

● With WDS (Wireless Distribution Service) can support 8-unit bridging function

● Support DFS (Dynamic Frequency Selection), IEEE 802.1d -Multi country roaming and other specifications

Authentication/Encryption (Wireless Security)

● Block users from discovering users in another specific VLAN group and assign VLANs based on SSID

● Supports data transmission encryption EAP-TLS+Dynamic WEP, EAP-TTLS+Dynamic WEP PEAP/MSPEAP+DynamicWEP and supports user authentication WPA-PSK/TKIP, WPA-802.1x/TKIP, 802.11iWPA2-PSK/CCMP/AES, WPA2 (802.1x /CCMP / AES)

● Support for hidden SSID to prevent unauthorized users from accessing the wireless network

● Support access control list (ACL) which can filter by MAC and IP address

● Operation mode: Support AP mode, WDS mode, ClientBridge+Repeater AP mode

● Support IEEE 802.11 an mode, transmission rate 2TX (300Mbps) / 2RX (300Mbps)

● Support up to 29dBm wireless output power

● Support wide voltage input, voltage input range DC12~24V

● Supports load current protection mechanism, built-in 4kV ESD (Electro Static Discharge) load and discharge lightning protection design. For use in homes or special balcony eaves in areas where lightning strikes frequently, just connect the ground wire to the ground to prevent damage caused by instantaneous lightning strikes.

● Support 8 sets of Multiple-BSSID functions and IAPP wireless network roaming function

● Supports wireless IGMP v1/v2/v3 functions, and can transmit online real-time audio and video packets.

● Support WDS (Wireless Distribution Service) to support 8 groups of bridge functions and multiple groups of Tag VLAN.

● Intelligent wireless distance parameter automatic setting, according to the input distance, the system can automatically fine-tune the best corresponding advanced parameters to achieve the best wireless transmission rate effect for the relative distance

● Supports QoS WMM (Quality of Service) bandwidth management and traffic control, and supports IEEE 802.1p QoS standard multicast and priority functions, suitable for multimedia applications. Data priority can be set according to the IP DSCP (DiffServ Code Point) field

● Supports IEEE802.1d Spanning Tree expansion tree function for wired and wireless interfaces. When multiple WDS wireless connections are used and wired lines are connected at the same time to achieve mutual backup of wired and wireless networks, it effectively prevents network loop infinite loop abnormalities

● Support SNMP v2c, SNMP v3, SNMP Trap

TQ-5040G high-power outdoor wireless bridge is suitable for wireless network connection services in harsh outdoor environments. It provides high-bandwidth network connection and multimedia IP data transmission needs for deployment enterprises and industrial users. It is not only suitable for network transmission but also for large-scale IP monitoring. TQ-5040G high-power outdoor wireless bridge equipment can use the built-in 18dBi gain antenna to effectively connect two distant nodes to the network. The transmission distance can reach 8km, and the transmission bandwidth can reach 80-90Mbps, which can provide wireless transmission quality that is no less than that of wired network quality.

TQ-5040G high-power outdoor wireless bridge device supports AP mode, WDS mode, ClientBridge+Repeater AP mode. The cooperation between different modes can achieve different functions, and can do point-to-point transmission and point-to-multipoint transmission. In WDS mode, a link form of 1 to 8 (fill in 8 different MAC addresses) can be realized. In AP mode, it can theoretically support 32 clients. The device supports Chinese and English interfaces, simple operation, and removes cumbersome operation methods, making debugging faster and more convenient, which is conducive to rapid deployment and very suitable for engineering and technical personnel to quickly get started. The power supply adopts DC12~24V wide voltage input design, and the actual power consumption of the equipment is less than 5W. In the case of no mains electricity in the wild, it can be flexibly matched with a variety of power supply methods such as batteries, solar energy, and wind energy to work. Due to these characteristics, this product is widely used in construction site monitoring, forest fire prevention monitoring, tourist scenic area monitoring, oil field mine monitoring, highway monitoring, factory campus monitoring and other environments.

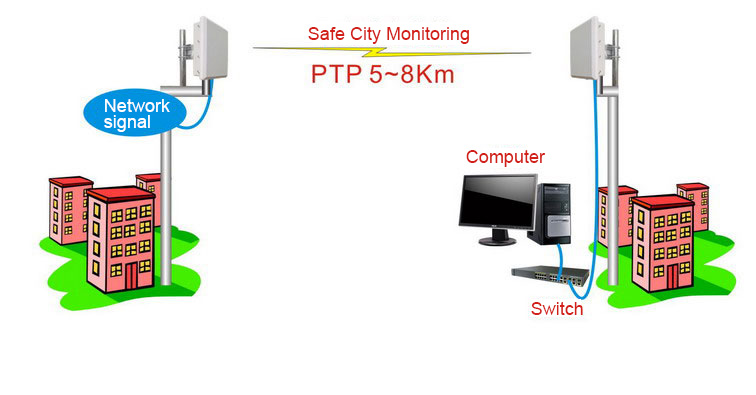

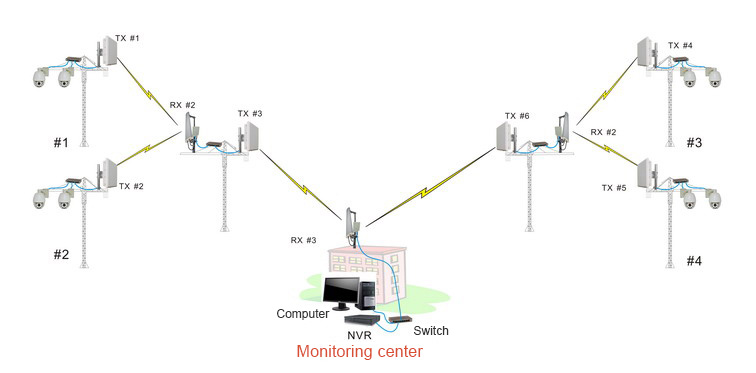

Transmission application diagram:

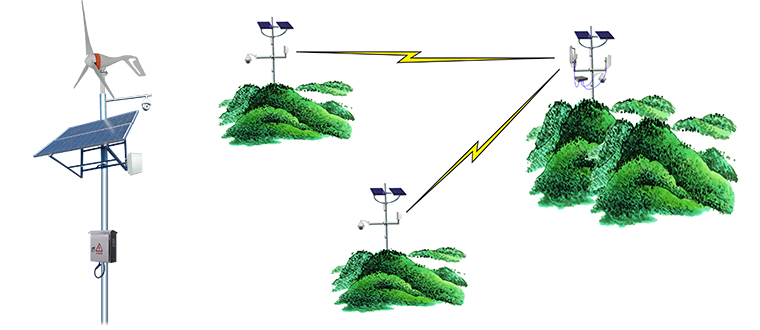

If there is no mains electricity in the wild, our company's solar and wind power supply systems can be used to power wireless devices.
