Base station 100km high bandwidth gigabit wireless transmission equipment

TQ-5823AC series high-capacity long-distance unlicensed frequency point-to-point digital wireless bridge, based on dynamic TDD point-to-point proprietary wireless protocol, with a transmission distance of 30-100 kilometers. Data is encapsulated into large packets for transmission, which improves transmission efficiency, increases the transmission distance, throughput and PPS forwarding capacity of the system. It can realize real-time transmission of voice, video and other data. Using 2×2 MIMO breakthrough technology, the throughput is up to 650 Mbps at 35 kilometers, with excellent PPS data packet processing capabilities and high anti-interference capabilities. It is widely used in the field of long-distance backbone line wireless transmission applications.

category:
Long-distance base station wireless transmission equipment
01

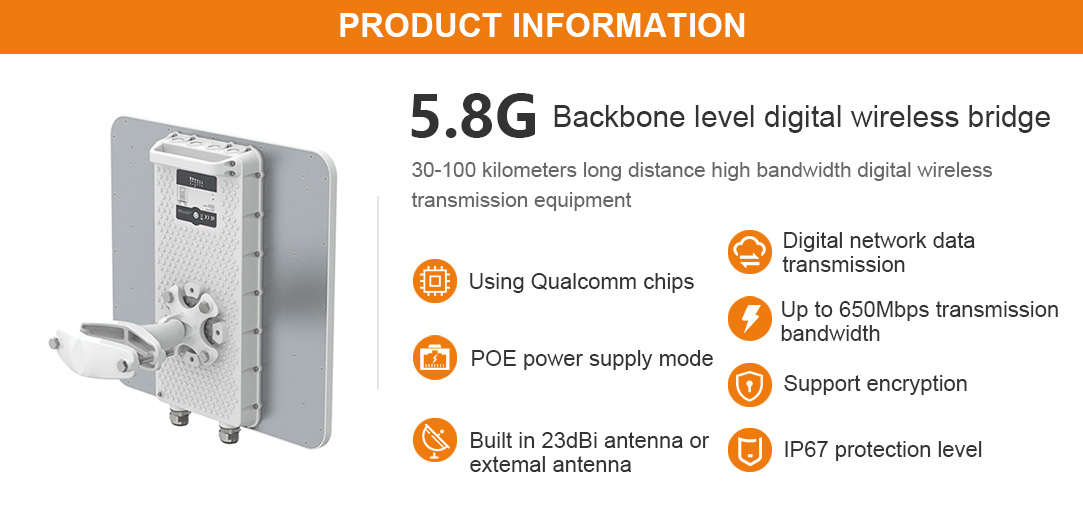

Product overview

TQ-5823AC series high-capacity long-distance unlicensed frequency point-to-point digital wireless bridge , based on dynamic TDD point-to-point proprietary wireless protocol, data is encapsulated into large packets for transmission, which improves transmission efficiency (forwarding capacity: 250000 PPS), improves bandwidth utilization (spectrum utilization: 7.5bit/Hz), increases the transmission distance, throughput and PPS forwarding capacity of the system. It can realize real-time transmission of voice, video and other data. Using 2×2 MIMO breakthrough technology, the throughput is as high as 650 Mbps at 35 kilometers, with excellent PPS data packet processing capabilities and high anti-interference capabilities.

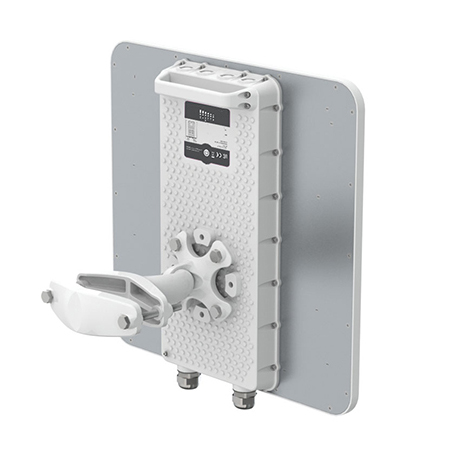

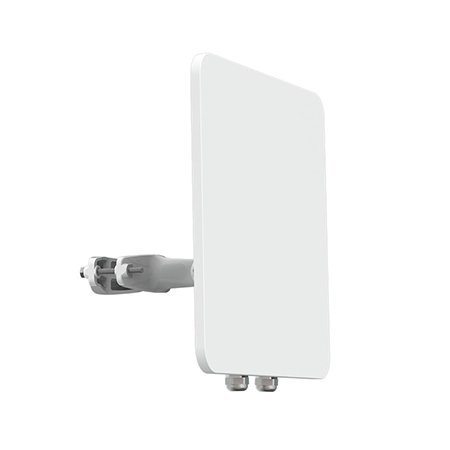

The TQ-5823AC series products are suitable for telecommunication-grade point-to-point network applications and are ideal for dedicated line access or backhaul applications (including VOIP and other small data packet transmission applications). This series of products achieves an extremely high spectrum utilization of 7.5 bit/Hz by combining flexible channel bandwidth (20 MHz, 40 MHz, or 80MHz) with a specially customized private protocol for long-distance transmission. The product has a built-in dual-polarized antenna (TQ-5823AC) or is equipped with 2 N-type connectors (TQ-5823AC-W), and the rugged cast aluminum housing reaches IP-67 protection level.


The TQ-5823AC series incorporates a series of advanced software mechanisms to provide the best point-to-point connection performance for high-throughput and long-distance link applications. The proprietary point-to-point communication mechanism uses dynamic time division duplex (TDD) technology to dynamically allocate bandwidth to the required transmission direction, thereby improving link efficiency and significantly reducing the impact of transmission distance on link throughput. Our point-to-point products also use selective retransmission ARQ technology to enhance error correction capabilities and optimize data traffic, allowing devices to achieve very high throughput in large bandwidths, long distances, and even in the presence of interference.


The new AC series products use a new 1.2 GHz CPU dedicated data processing chip to provide powerful 250KPPS packet processing capabilities and fast wireless connection performance. The 2x Gigabit Ethernet ports support POE relay and when one port does not work, the other port can continue to support single-channel functions, making the product ideal for high-speed video surveillance scenarios. The port supports the 802.3 standard. It complies with FCC/IC/CE/RoHS standards. At the same time, it has built-in electrostatic protection that complies with the IEC 61000-4-2 (ESD) standard and surge protection that complies with the IEC61000-4-5 (Surge) standard.




02
Product features

● 5GHz point-to-point bridge, ideal equipment for dedicated line access, data backhaul, and network usage

● Flexible adjustment of channel frequency and channel bandwidth (20/40/80MHz)

● Wireless transmission rate up to 866Mbps, actual throughput up to 650Mbps

● Advanced private MiMo 2 proprietary wireless protocol

● PoE power supply, support 802.3af standard

● Support 1000 Base-T Ethernet interface

● Wireless transmission power up to 31dBm (±2dBm)

● Advanced safety technology

● Comprehensive management functions

● Web Graphical Interface

● Support SSH command management

● Support WNMS centralized management

● Support SNMP V1/2/3: 802.1, 802.1x, MIBII

● Support system log

● Professional installation components that can adapt to a variety of installation scenarios

● Equipped with OLED LCD display and calibration buzzer

● IP-67 protection grade

03

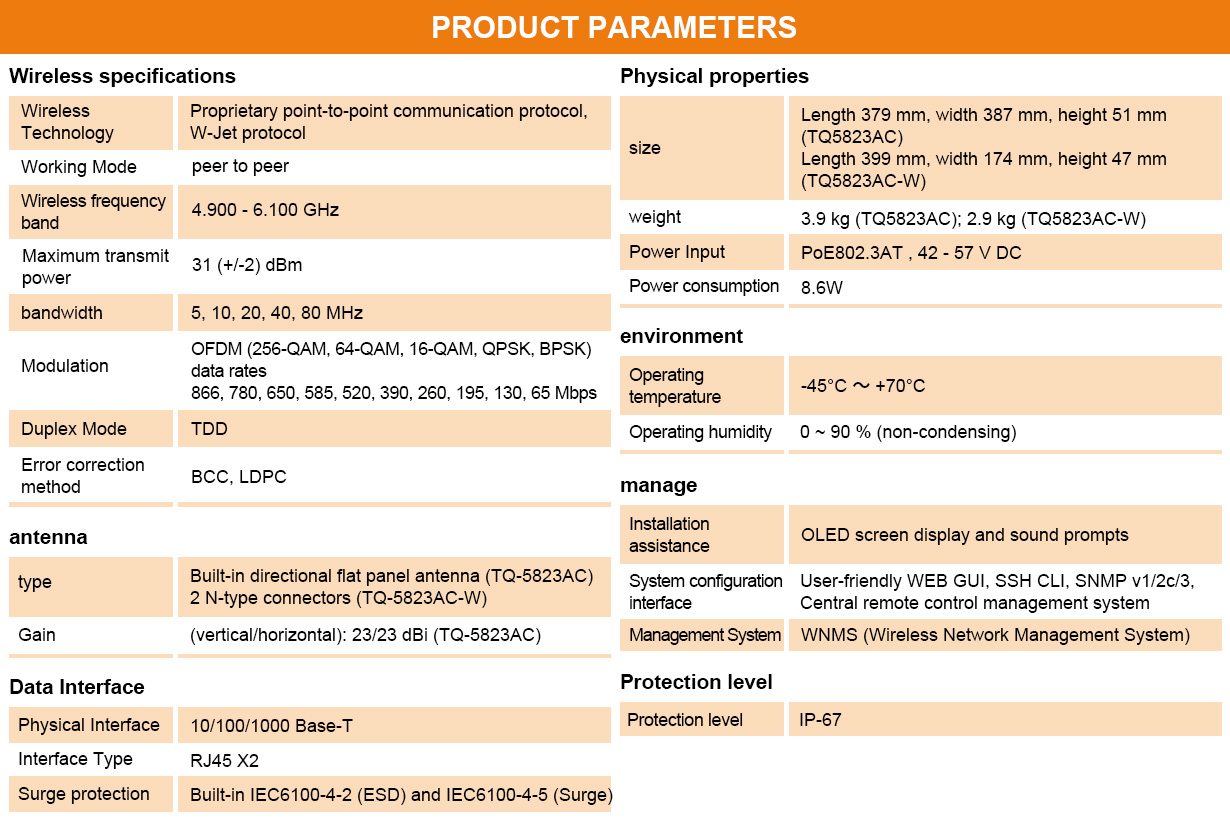

Product parameters



04

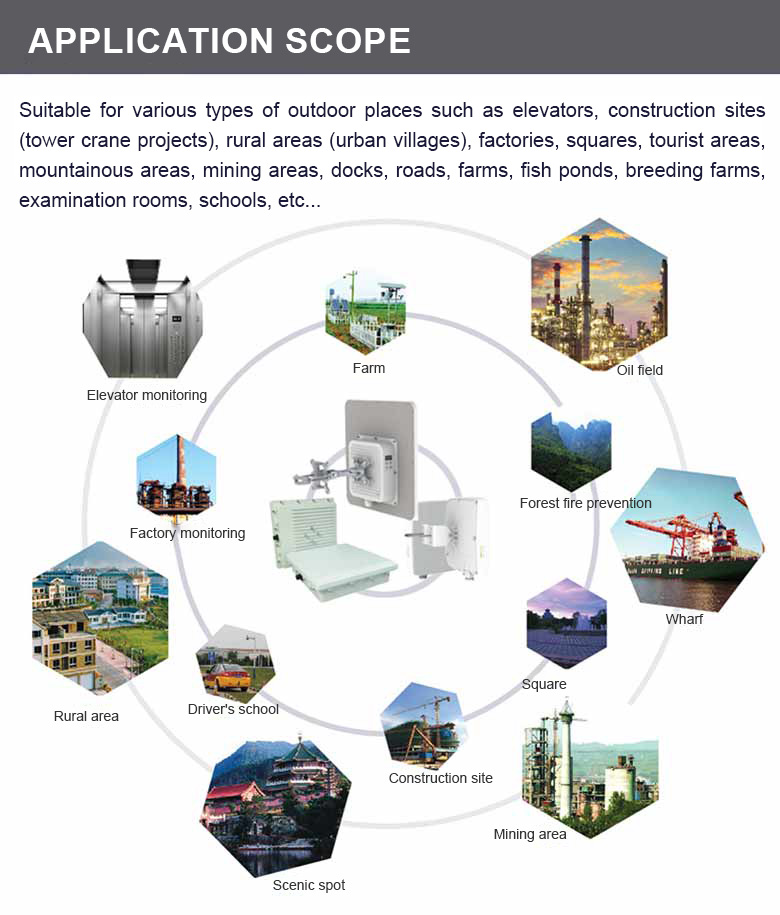

Product application

Due to the high bandwidth and high stability of this product, the equipment is widely used in forest fire prevention, island monitoring, mining areas, factory big data transmission and other fields.


Safe cities, road monitoring, firefighting, military exercises, large outdoor facilities, communities, etc., can quickly build a wireless LAN using wireless networking transmission technology. In the application of forest fire prevention systems, it is extremely important to establish an effective video surveillance management system in the forest area. Through the video surveillance system, fires can be discovered in the first time, and work uninterruptedly around the clock, reducing the patrol work of forest staff. Mines, water conservancy systems, coastal defense monitoring, and oil field video surveillance systems have many monitoring points and are widely distributed. It is difficult to construct signals through traditional wiring, and the workload of later line maintenance is large. Establishing a wireless local area network video surveillance system overcomes geographical restrictions, has the advantages of flexible and convenient wireless point layout, high link data, stable system, low power consumption, and strong anti-interference. Realizing data transmission between multiple points or between points can completely realize wireless data transmission. Establishing a wireless data link can achieve hundreds of megabits of net rate transmission between multiple points or between points, meeting various large data transmission requirements. Wireless transmission has the advantages of strong confidentiality, flexible construction, and stable system.
