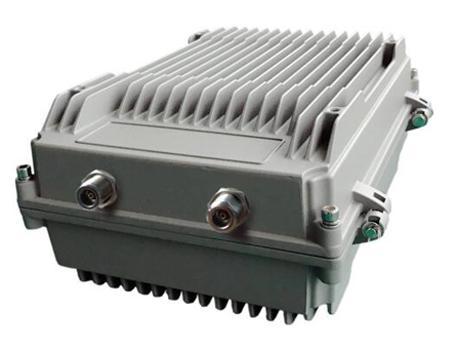

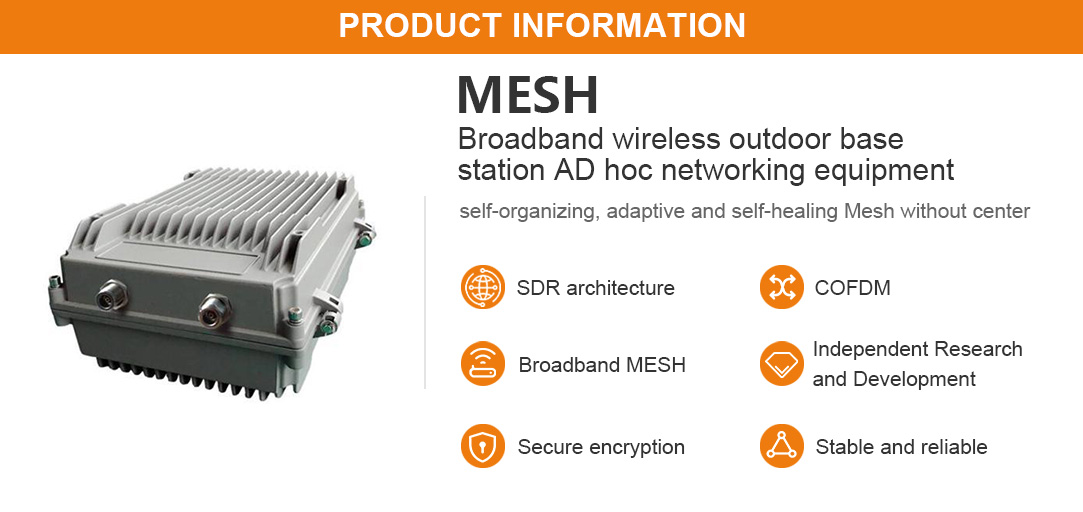

MESH TQ-6502SW Wideband Wireless MESH outdoor base station AD hoc networking product is our company's new miniaturized, high-throughput wideband MESH equipment. The device is developed based on COFDM technology and MESH multi-hop AD hoc networking technology, and realizes the free networking of different product forms, which can provide users with fast and flexible solutions for various business needs (such as: high-definition video, voice intercom and IP data transmission) in a complex environment. Wideband AD hoc network radio capable of self-organizing, adaptive and self-healing Mesh without center is the best choice for point-to-point, point-to-many or many-to-many integrated service communication. Mesh radio realizes the communication between different nodes in the same network. Dynamic routing, HD video with multi-hop relays, multi-channel data and fidelity calls in complex applications such as fast movement, occlusion of non-line-of-sight and environmental interference. Full IP design, flexible installation and use, easy operation and maintenance, can provide a variety of frequency band customization, expand WIFI, GPS, 3G/4G and other functions to support integrated communication needs. Flexibly used in military communication private networks, public security private networks, emergency communication private networks, industry information private networks, regional broadband private networks, wireless monitoring private networks, collaborative management private networks and intelligent transmission private networks, etc. For military communications, anti-terrorism emergency response, public security law enforcement, security activities, emergency rescue, fire command, forest fire prevention, forest monitoring, civil air defense/earthquake, power inspection, digital oil field, drone swarm, vehicle interworking, ship formation, maritime communications, airport ground handling, subway emergency response, highway construction, hydrology monitoring, mobile mining and sowing, medical treatment and other fields, Provide stable, reliable, timely and efficient high-definition video, multi-channel data, clear voice and visual command and dispatch.
Product Features:
●Multi-carrier COFDM technology
●Peak point-to-point throughput up to 70Mbps
●point-to-point transmission distance of more than 10Km (visual distance)
●Multi-hop AD hoc networking (MESH) technology Automatic networking, automatic calculation of the network route, without manual intervention,
effectively save manpower and material resources
●Supports 32-node AD hoc networking, automatic multi-hop transmission, and seamless area coverage
●Portability and ease of use Boot immediately, no need to set Supports mobile phone and Web configuration and remote management
●Customized function
●Transmit power 0.1-2W adjustable
●Operating band 200MHz-2.4GHz can be customized
●Signal bandwidth 5/10/20MHz adjustable
